Architectural Speakers

Ci160TS

  • Sale
Tax included.

Features KEF’s patented Uni-Q driver array

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci-T Series speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium.

Ci160TS

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci-T Series speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium. Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments or your music system.

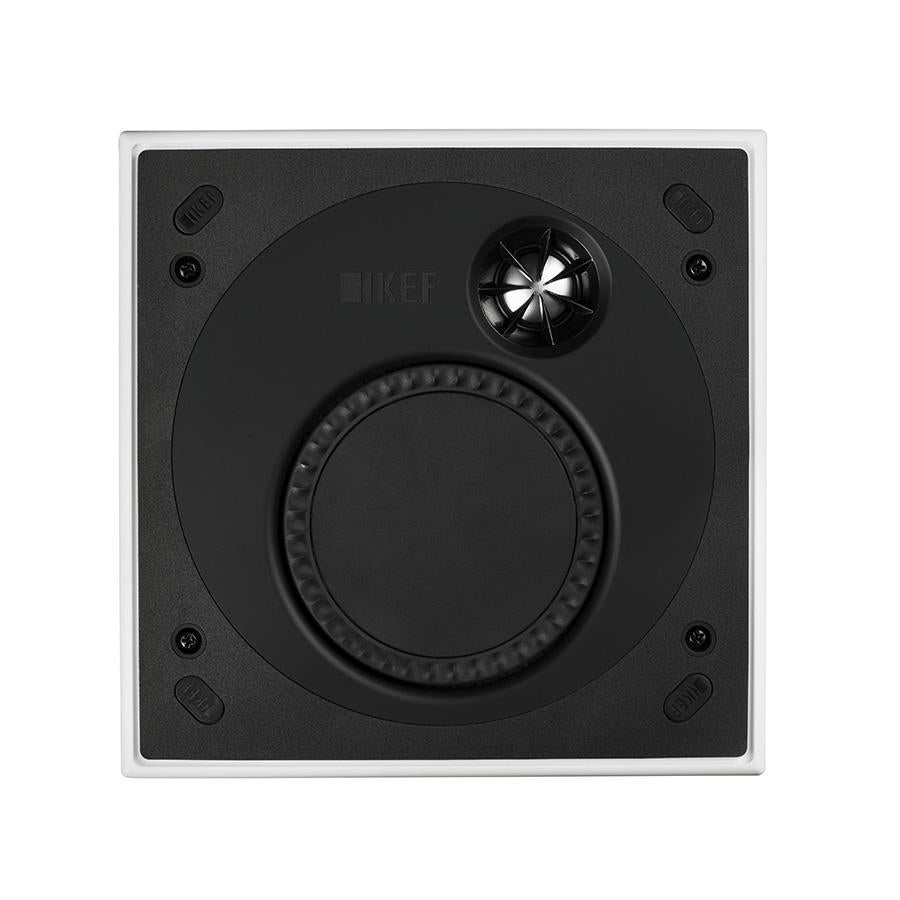

Grille Off

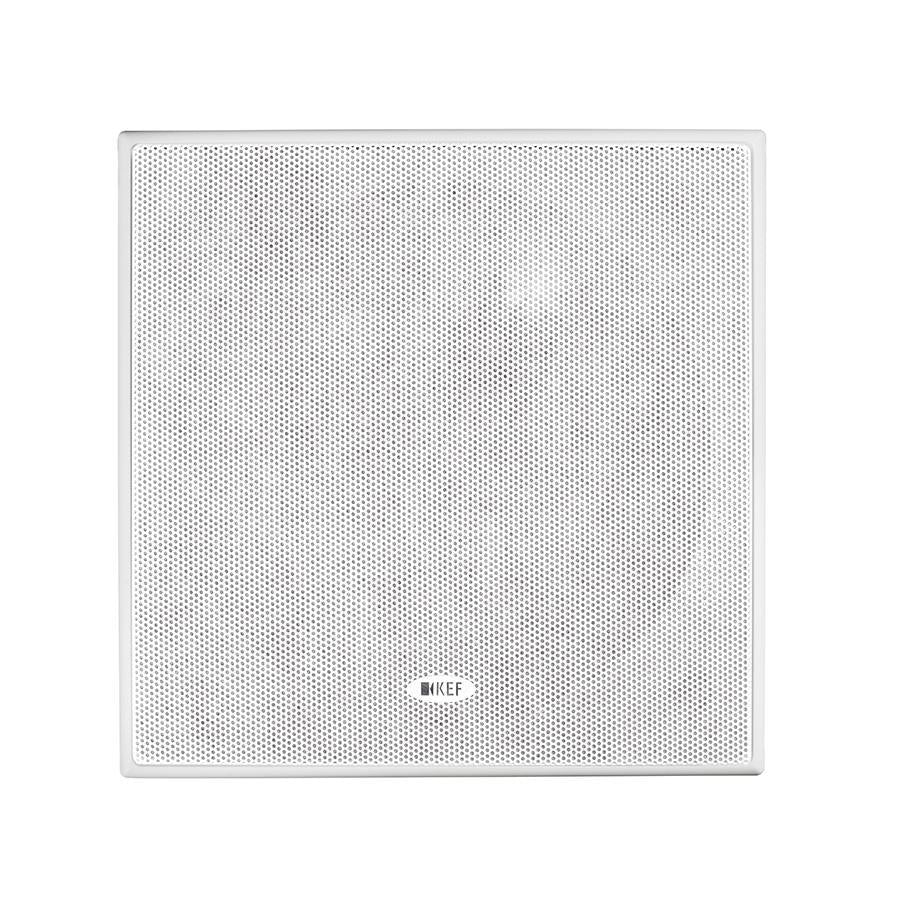

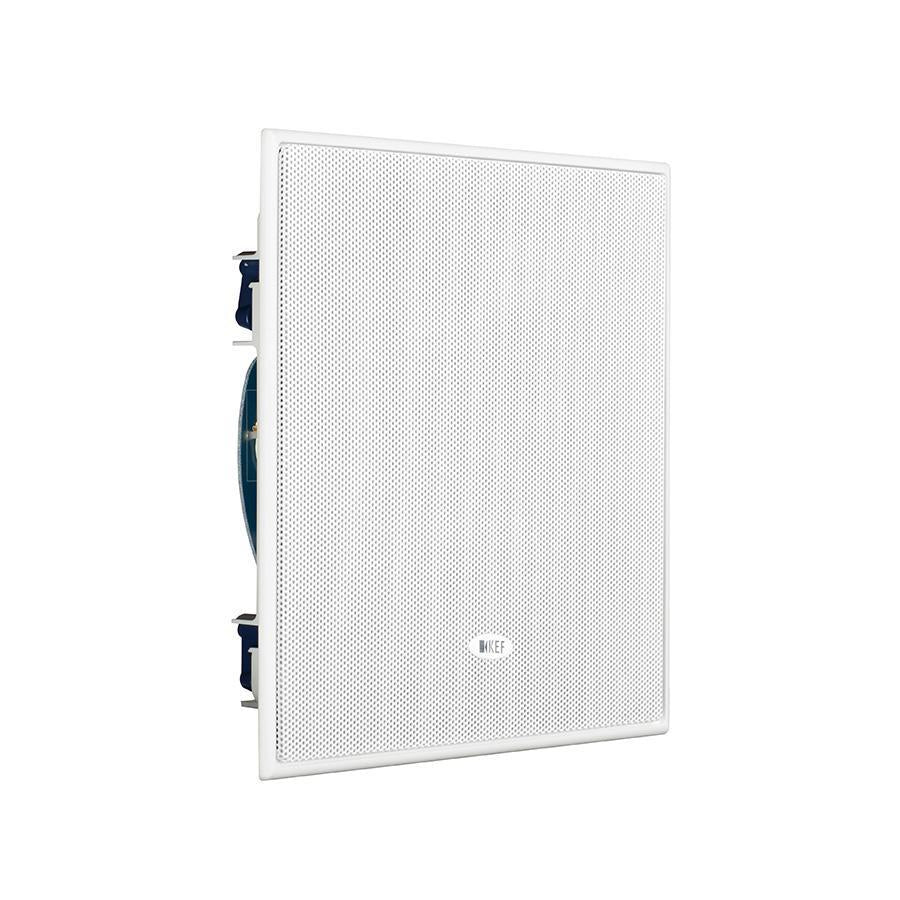

Grille On

The Details

Key Features
<36mm mounting depth allows fitment to very restricted cavities
Ultra-low profile LF unit with excellent bass extension
Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
Rigid flat diaphragm assures clean upper bass and mid-range response
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg

FEATURES

accordion open
  • <36mm mounting depth allows fitment to very restricted cavities
  • Ultra-low profile LF unit with excellent bass extension
  • Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
  • Rigid flat diaphragm assures clean upper bass and mid-range response
  • Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg

SPECIFICATIONS

accordion open
Nominal Impedance
8 Ohm
Sensitivity
87dB (2.83V/ 1m)
Crossover Frequencies
1.7kHz
Frequency Response
110Hz - 24Hz (+/-6dB) open-backed
Drive Units
LF: 115mm (4.5in. Dual layer)
HF: 25mm (1in.)
Recommended Amplifier Power
10-100W
Product External Dimension (H x W x D)
Diameter : 222.8x222.8 mm (8.77 x 8.77 in.)
Depth : 41mm (1.61in.)
Cut-Out Dimensions (H x W)
194 x 194 mm (7.64 x 7.64 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)
Mounting Depth From Surface
<36mm (1 7/16in.)
Optional Rough In Frame
RIF160S
Optional Rear Enclosure
RNC160S
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
