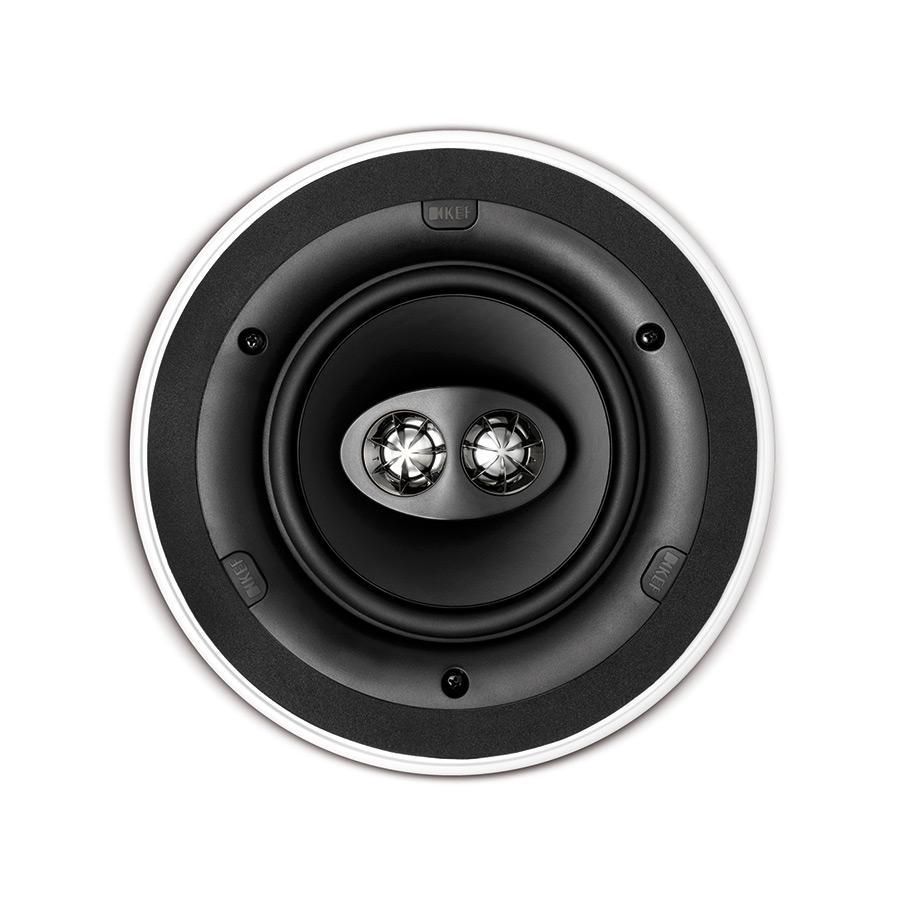

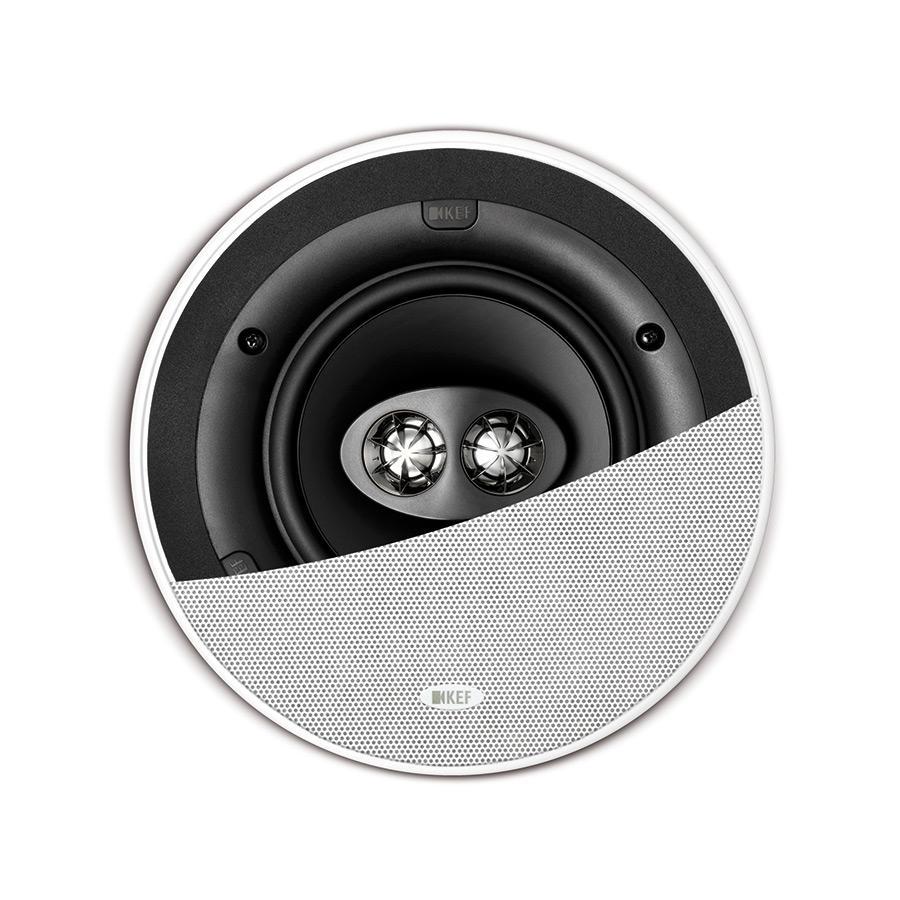

Thin-bezel in-ceiling speaker
The Ci160CRds thin-bezel in-ceiling speaker is a high-fidelity flush-mount dual stereo speaker that is ideal for locations with room for only one speaker.
Ci160CRds Dual Stereo
KEF’s Dual Stereo models are high-fidelity flush-mount speakers that recreates stereo, and are ideal for locations where there is only room for one speaker. Thanks to KEF's simple and ingenious screw down clamping system - with moisture-resistant fixings - you can place these speakers in environments such as bathrooms or under eaves.
The Details
Key Features
UTB™ Ultra Thin Bezel
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
FEATURES
UTB™ Ultra Thin Bezel
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
SPECIFICATIONS
Nominal Impedance
8 Ohm
Sensitivity
91dB (2.83V/ 1m)
Crossover Frequencies
3.2kHz
Frequency Response
50Hz - 20kHz (±6dB) open backed
Drive Units
LF: Dual voice coil 160mm
HF: 2 x 19mm (0.75in.)
HF: 2 x 19mm (0.75in.)
Recommended Amplifier Power
10 - 80W
Product External Dimension (H x W x D)
Diameter : 234.6mm (9.24in.)
Depth : 93mm (3.66in.)
Depth : 93mm (3.66in.)
Cut-Out Dimensions (H x W)
Diameter : 196mm (7.71in.) Without back can
Mounting Thickness
Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only : 86mm (3.36in.)
Optional Rough In Frame
RIF160R
Net Weight
1.80kg (4.0lbs.)
Unit Measurement
Piece
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
