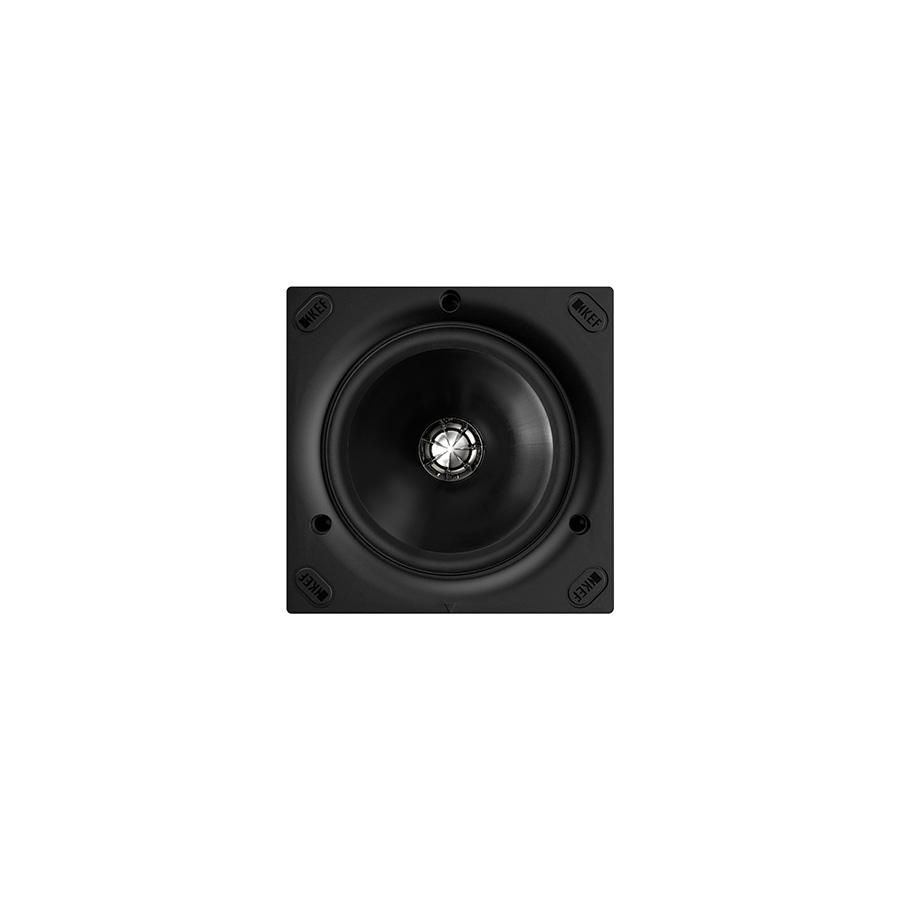

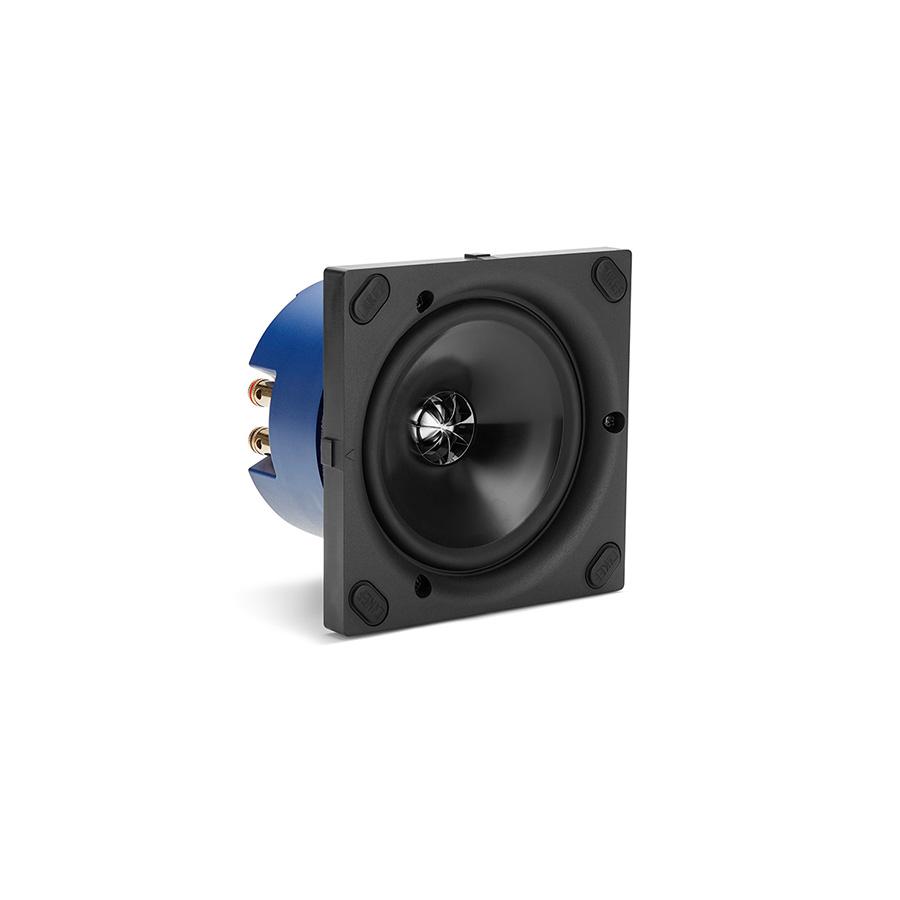

Ci130QSfl

  • Sale
  • Regular price €240,00
Tax included.

Shape
Woofer Size
Mounting Depth

Flush Mount Architectural Speaker

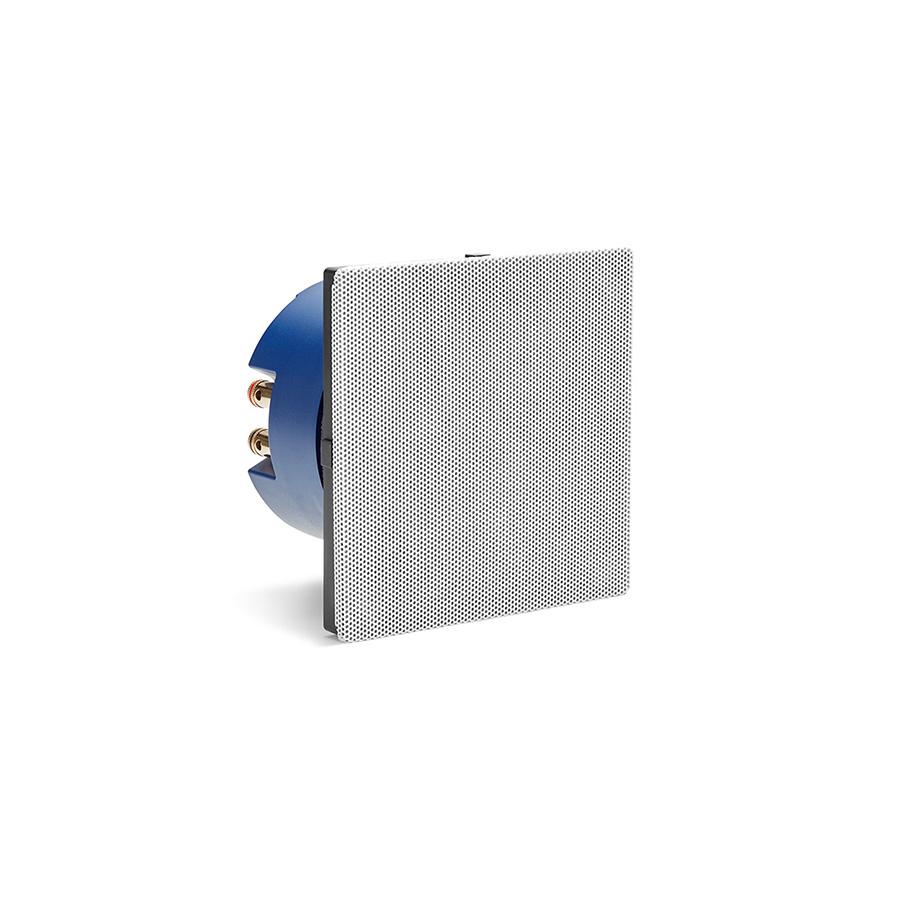

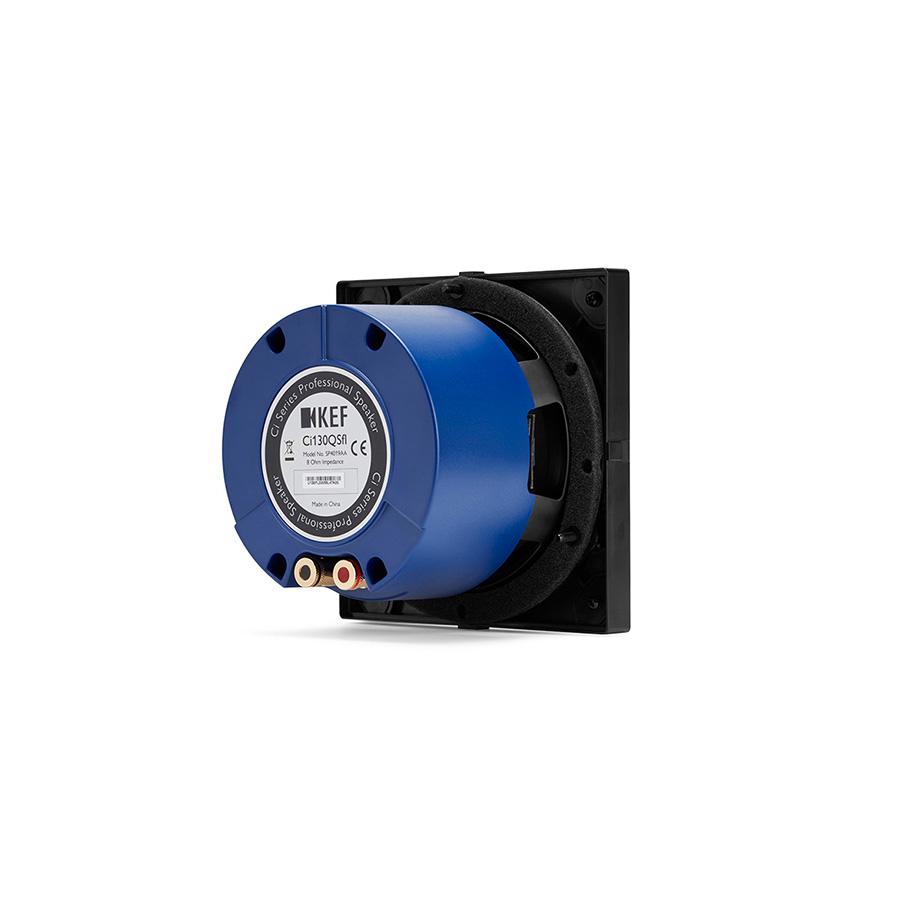

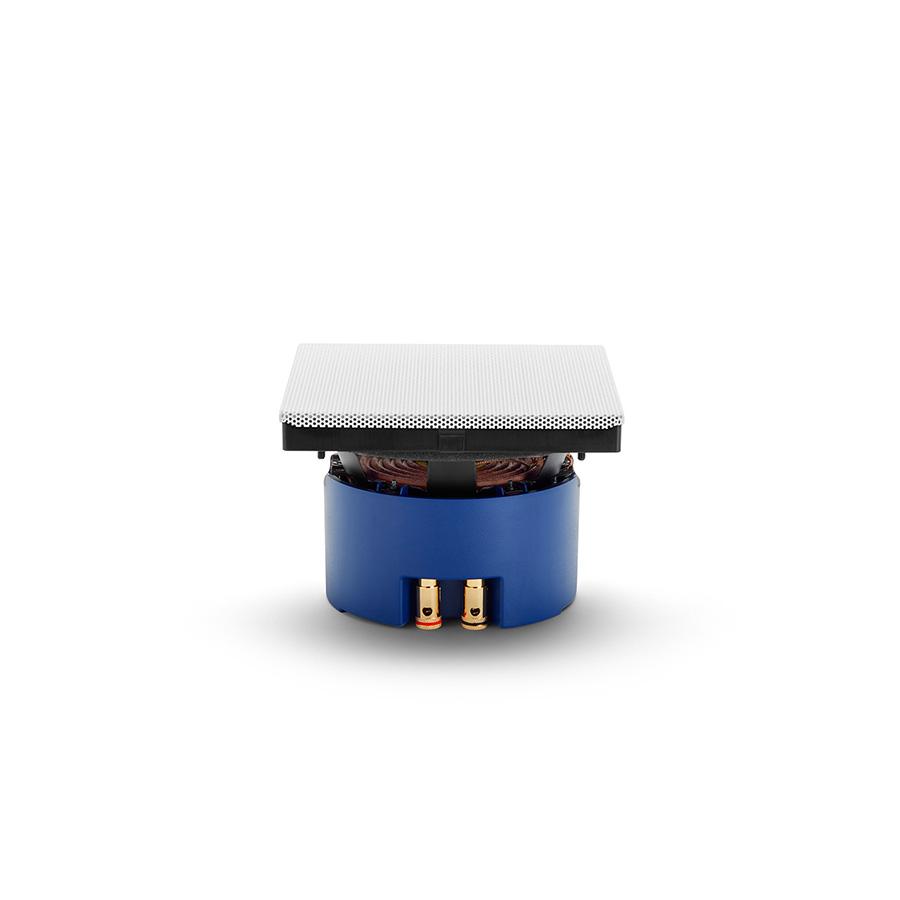

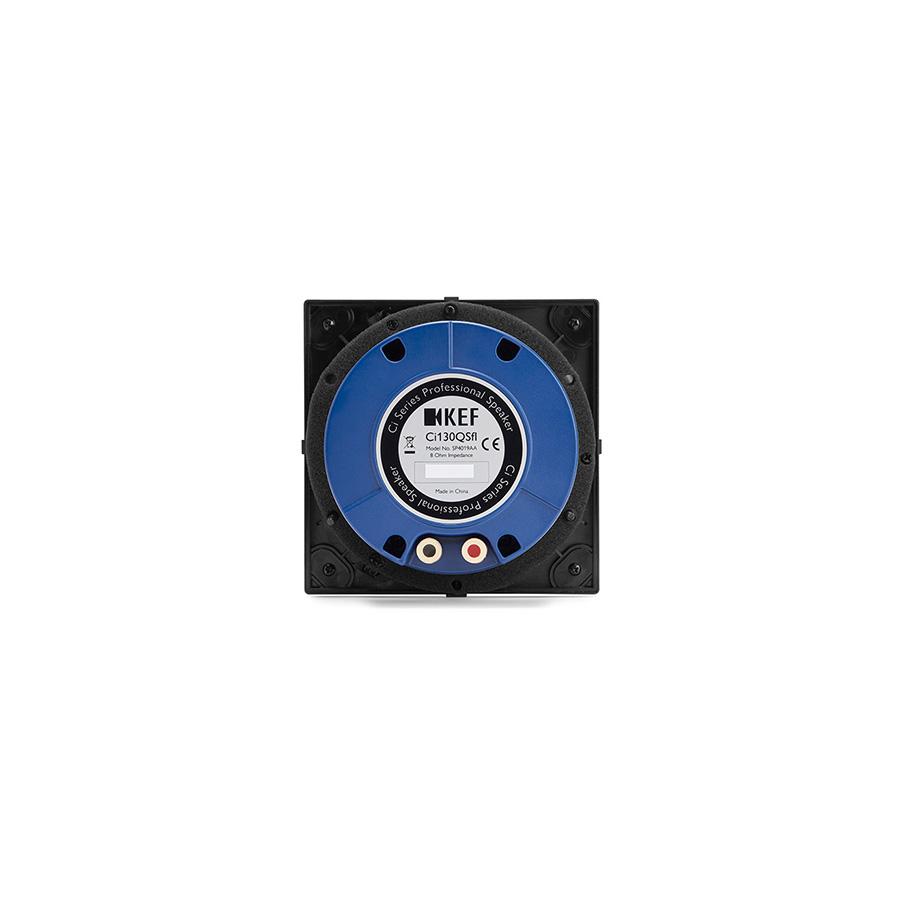

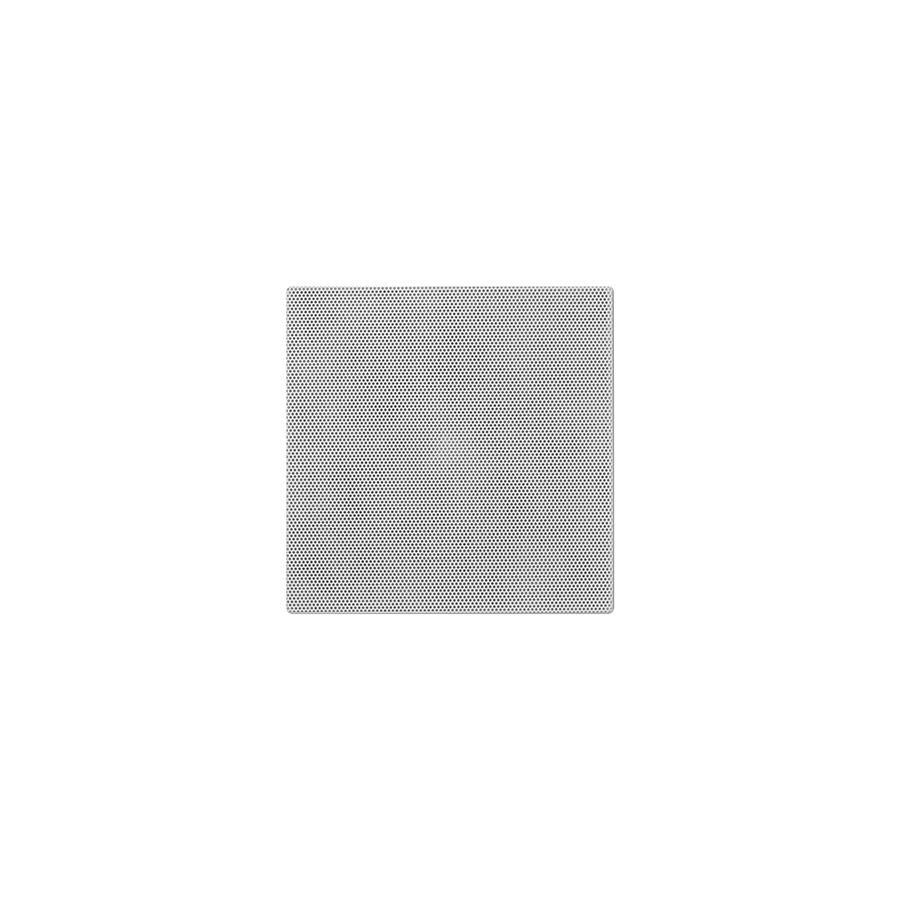

The KEF Ci130QSfl is a flush-mounted frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QSfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.


Ci130QSfl

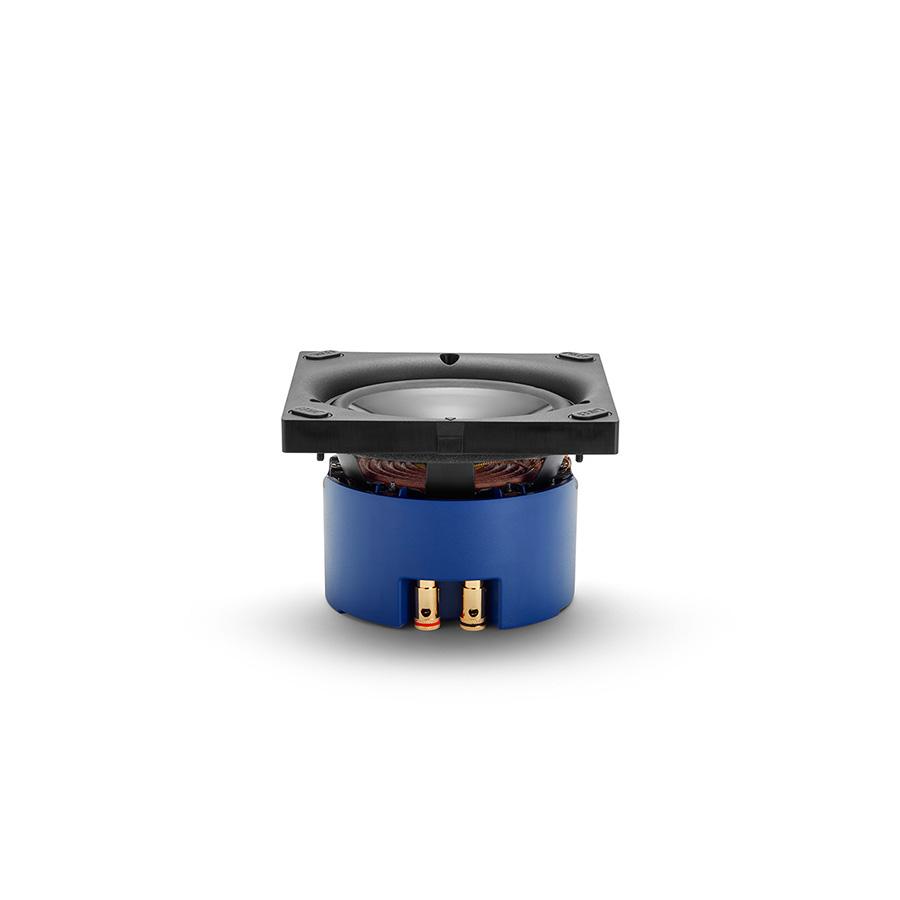

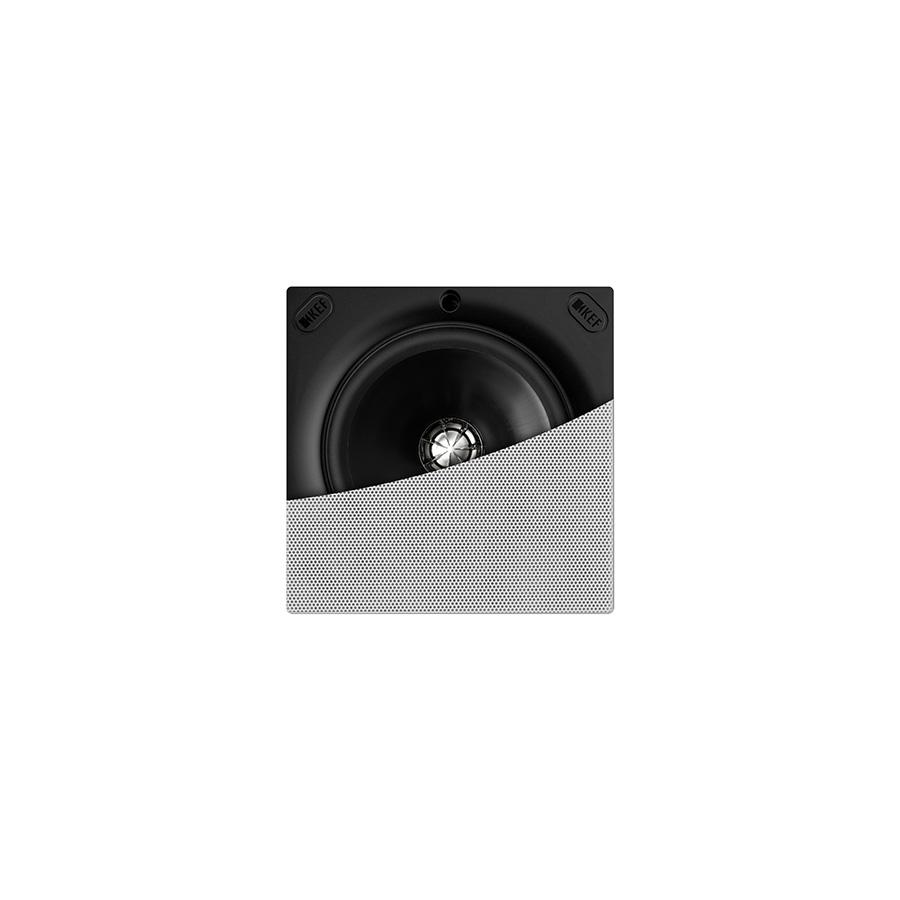

Part of the Ci Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.

Intuitive Installation

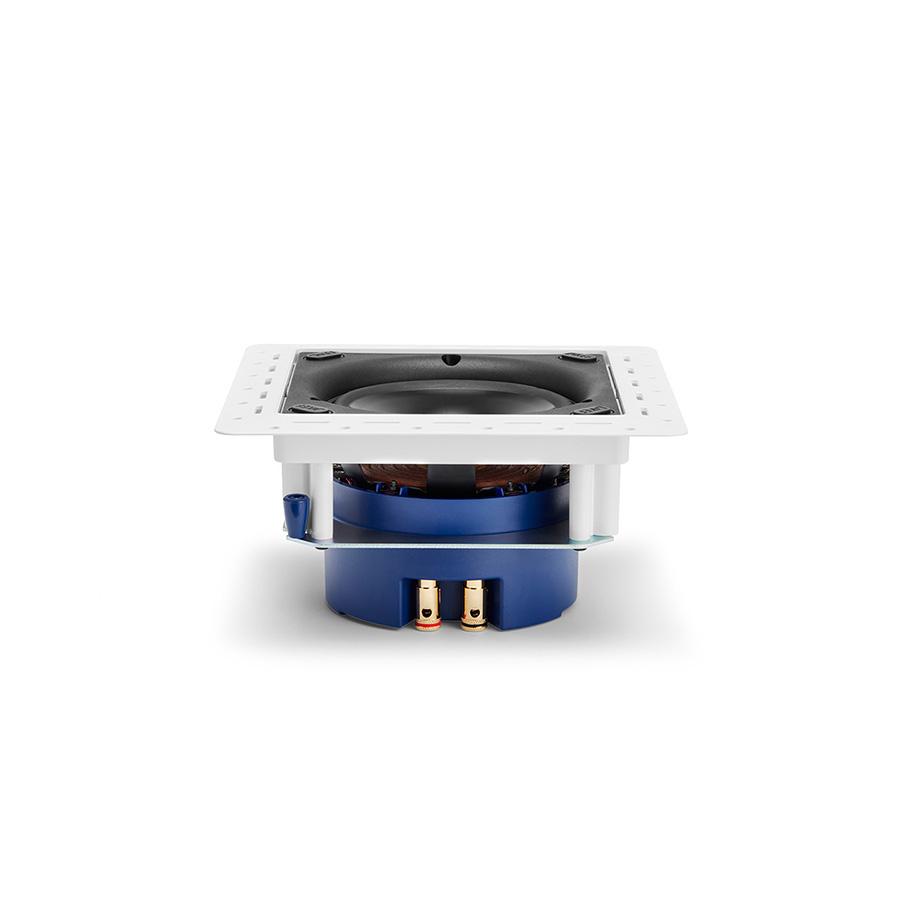

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

SPECIFICATIONS

The Details

Specifications

NOMINAL IMPEDANCE

8 Ohms



SENSITIVITY

87dB (2.83V/ 1m)



Frequency response (±6dB)
open-backed

45Hz - 34kHz



Frequency range (-10dB)

38Hz-30kHz



Nominal coverage (degrees)

130



Max SPL (dB)

103



Crossover frequency

3.8kHz



DRIVE UNITS

LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)

RECOMMENDED AMPLIFIER POWER

10-100W



Recommended high-pass filter (Hz)

50Hz



Product external dimensions

200.5 x 200.5 x 103.6 mm
(7.9 x 7.9 x 4.08 in.)



CUT-OUT DIMENSIONS

158 x 158 mm
(6.22 x 6.22 in.)



MOUNTING THICKNESS

Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 8mm (0.315in.)



Net Weight

1.6kg (3.53Ibs.)



Mounting depth from surface

101mm (3.98in.)



OPTIONAL ROUGH IN FRAME

NA



OPTIONAL REAR ENCLOSURE

NA



Ideal Rear Volume(L)

15

Minimum Rear Volume(L)

10



Safety and Regulatory Compliance

NA



Mounting Thickness (Maximum)

35mm (1.38in.)



Mounting Thickness (Minimum)

9mm (0.36in.)



DOCUMENT DOWNLOAD

Please visit our Ci Software Download page for more details.
