Architectural Speakers

Ci160TR

  • Sale
  • Regular price
Tax included.

Features KEF’s patented Uni-Q driver array

Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and your music system.

Ci160TR

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci-T Series speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

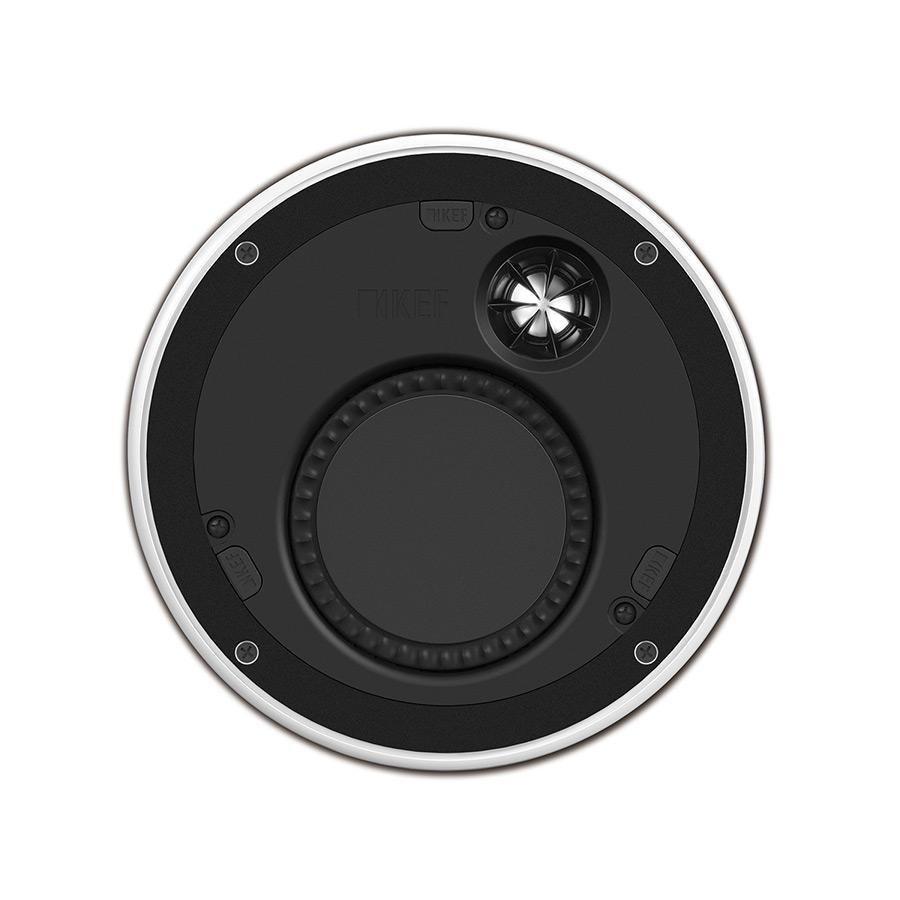

Grille Off

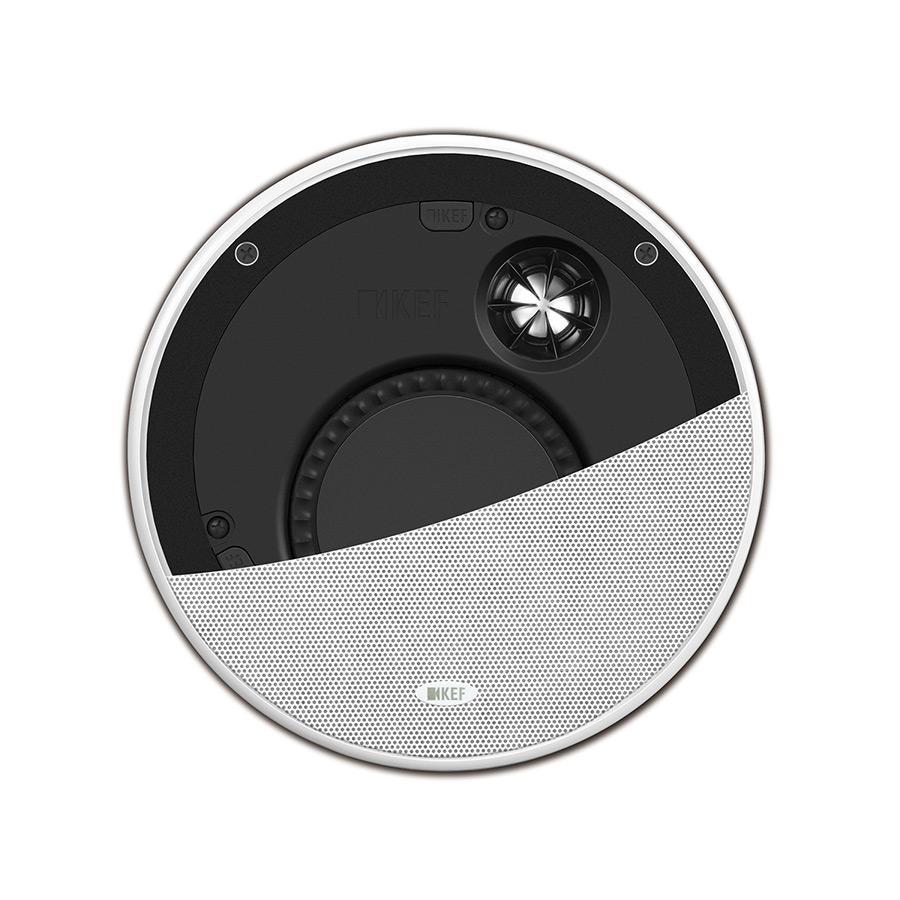

Grille On

The Details


FEATURES

accordion open
<36mm mounting depth allows fitment to very restricted cavities
Ultra-low profile LF unit with excellent bass extension.

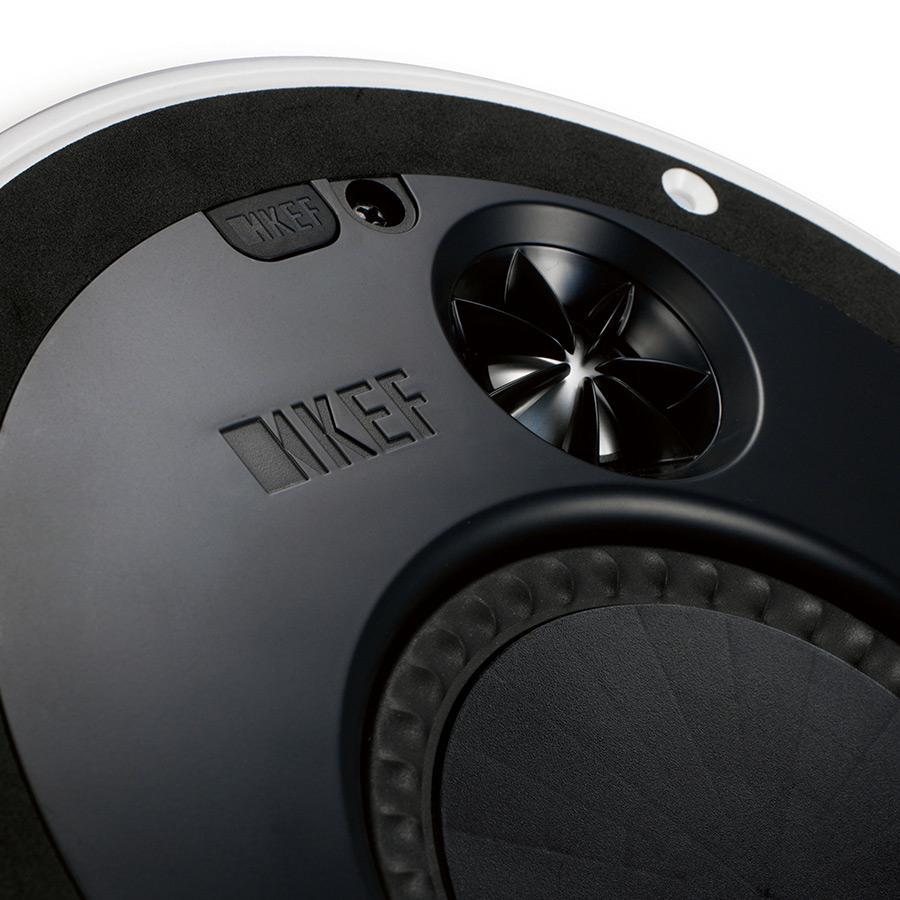

Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion.
Rigid flat diaphragm assures clean upper bass and mid-range response.
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor.

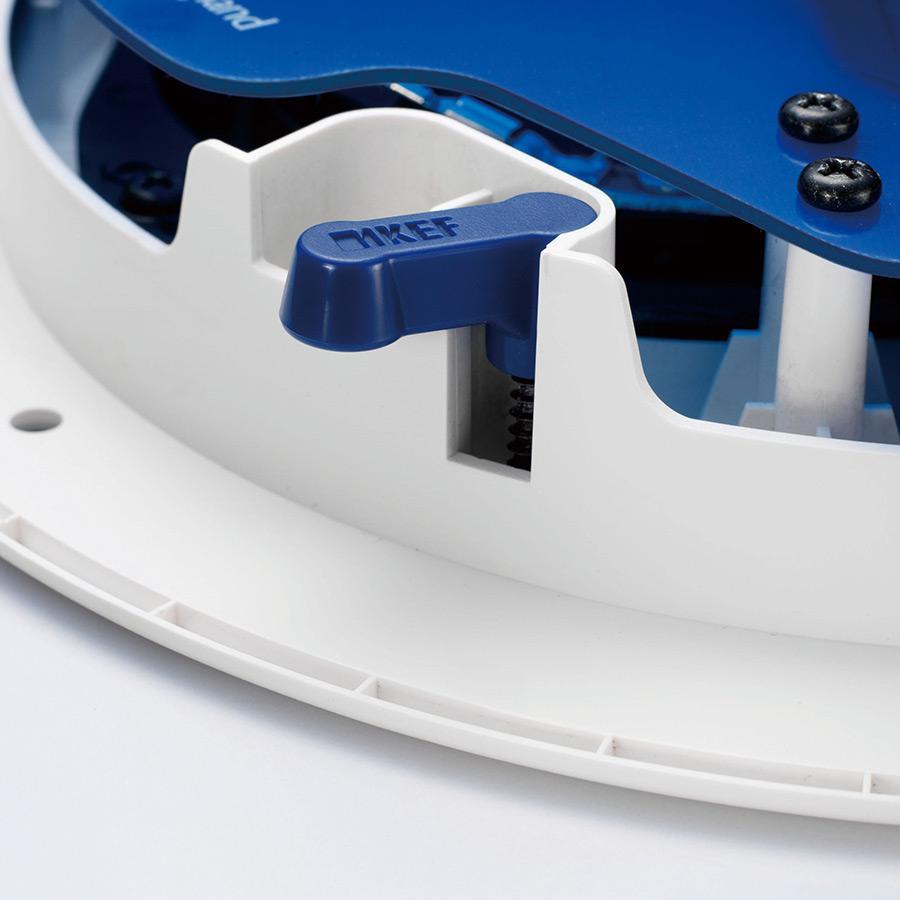

Fast, versatile installation on virtually any surface via dogleg or direct screw fastening.

SPECIFICATIONS

accordion open
Nominal Impedance
8 Ohm
Sensitivity
87dB (2.83V/ 1m)
Crossover Response
1.7kHz
Frequency Response
110Hz - 24kHz (±6dB) open backed
Drive Units
LF: 115mm (4.5 in.) dual layer MF
HF: 25mm (1 in.) aluminium HF
Recommended Amplifier Power
10-100W
Product External Dimension (H X W X D)
Diameter: 234.6mm (9.24 in.)
Depth: 40mm (1.57 in.)
Cut-Out Dimensions (h X W)
196mm (7.71 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)
Mounting Depth From Surface
36mm (1.42 in.)
Optional Rough In Frame
RIF160R
Optional Rear Enclosure
RNC160R
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.

Please visit our Ci Software Download page for more details.
