Accessories

BTS30 Bluetooth Keypad and Compact Amplifier System

The KEF BTS30 is capable of delivering Hi-Fi quality audio to a pair of loudspeakers

Flexible enough to deliver sound to systems in other rooms, Ideal for use in a wide variety of applications including homes, hotels, bathrooms and kitchens.

BTS30 Bluetooth Keypad and Compact Amplifier System

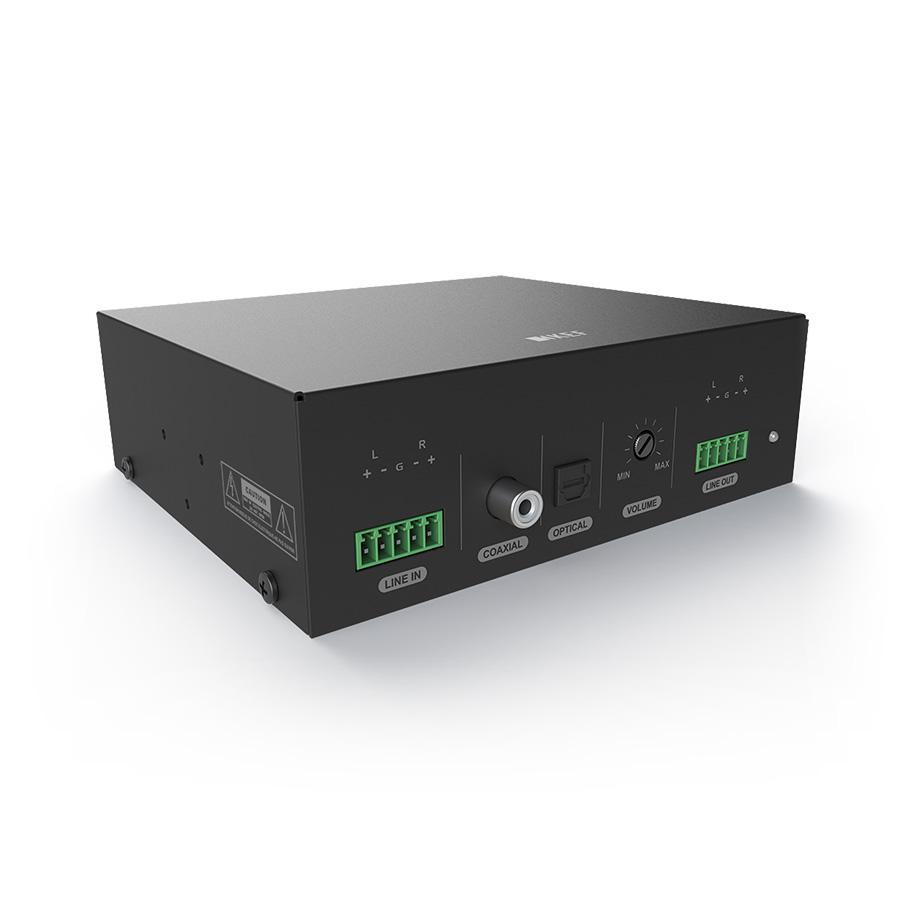

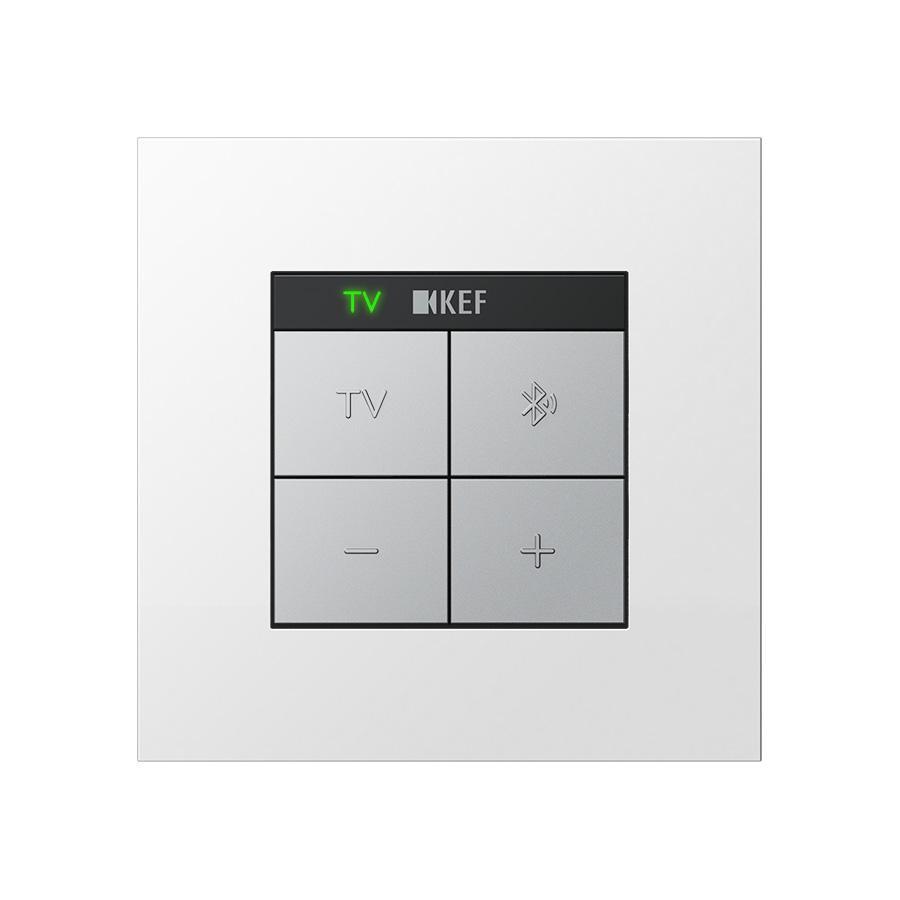

BTS30 comprises two elements: a Bluetooth-enabled wall-mountable keypad unit and a highly compact class D amplifier. It is capable of delivering Hi-Fi quality audio to a pair of loudspeakers, and is flexible enough to deliver sound to systems in other rooms. Ideal for use in a wide variety of applications including homes, hotels, bathrooms and kitchens.

BTS30 is not only designed to deliver great sound, but also to be installer friendly and attractive for commercial use. The amplifier and keypad units are connected via RJ45 terminated twisted pair cables, with a maximum length of 20 metres, making positioning in more difficult installations a breeze. With IP64 certified keypad unit, and UL2043 approved amplifier unit allows for installation in bathrooms and air handling spaces respectively. Customers can even decide whether to utilise mono or stereo output, and set a maximum volume.

Stereo audio from TV / Bluetooth® aptXTM Wireless music streaming

Select a property

Mono audio from TV / Bluetooth® aptXTM Wireless music streaming

Select a property

The Details


SPECIFICATIONS

accordion open
Inputs
Bluetooth 4.2 with Qualcomm® aptX™ codec
Line-in
Coaxial
Optical
Output
Stereo Mode 2 X 15w@8 Ohms
Mono Mode 30w@4 Ohms
Line-out
Bluetooth Range
10m
Bluetooth Capacity
8 Devices
Bluetooth Frequency
2.4GHz
Bluetooth Power
2.5mW For Class 2
Operation Voltage
100-240-vac
Frequency Response
20Hz-20KHz
EQ Frequency
100Hz +6dB, 10KHz - 1dB
Signal To Noise
90db
Speaker Output Short Circuit Protection
Yes
Dimension ( H X W X D )
Amplifier Unit: 45 x 143 x 125mm (1.77 x 5.63 x 4.92  in)
Keypad Unit: 45 x 45 x 40mm (1.58 x 1.77 x 1.77  in)
Metal Frame: 1 x 71 x 71 Rnrn (0.04 x 2.80 x 2.80  in)
Weight
Amplifier Unit: 530g (1.168 lbs)
Keypad Unit: 40g (0.088 lbs)
Metal Frame: 28g (0.061 lbs
